Redefining Timeless Design: The New d line Dispenser Series

d line dispenser series, originally designed by Knud Holscher in the 1970s, has been newly interpreted and updated in close collaboration with Holscher Design.

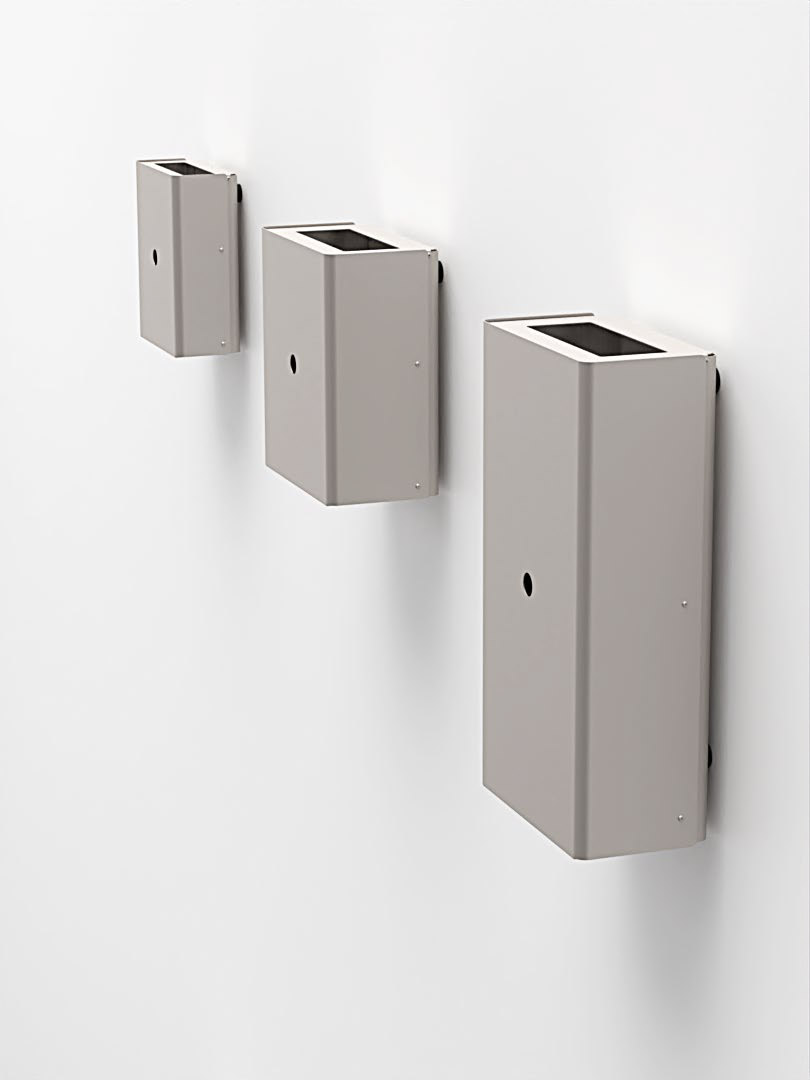

Waste bins: S, M, L

• Introducing 3 new standard sizes:
  Small: 285 x 150 x 350 – 10 L
  Medium: 350 x 210 x 400 – 20 L
  Large: 350 x 210 x 650 – 40 L
• Only optional with a framed throw-in hole. No lid available.

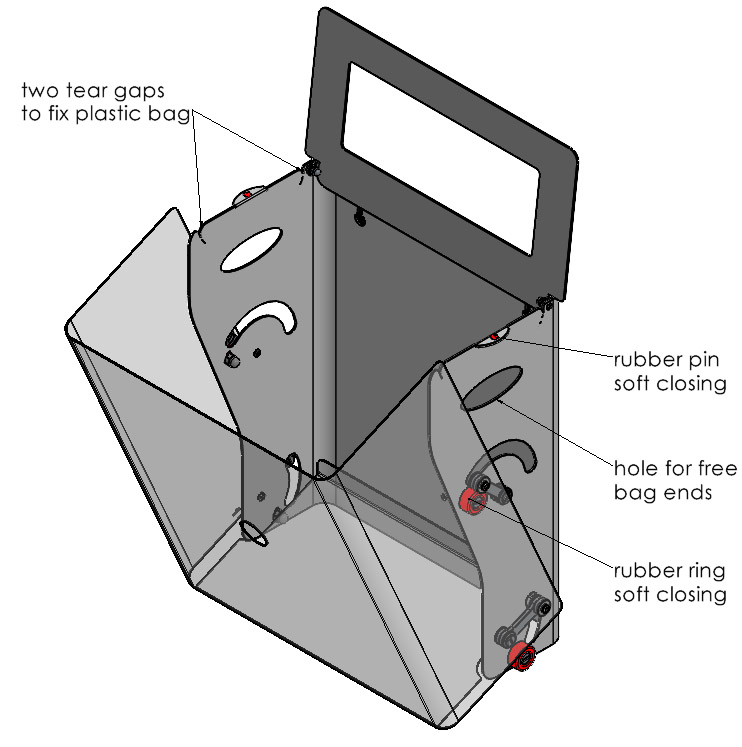

• Smooth closing with no stuck opening-mechanism (greater opening angle)
• New plastic bag fastening solution

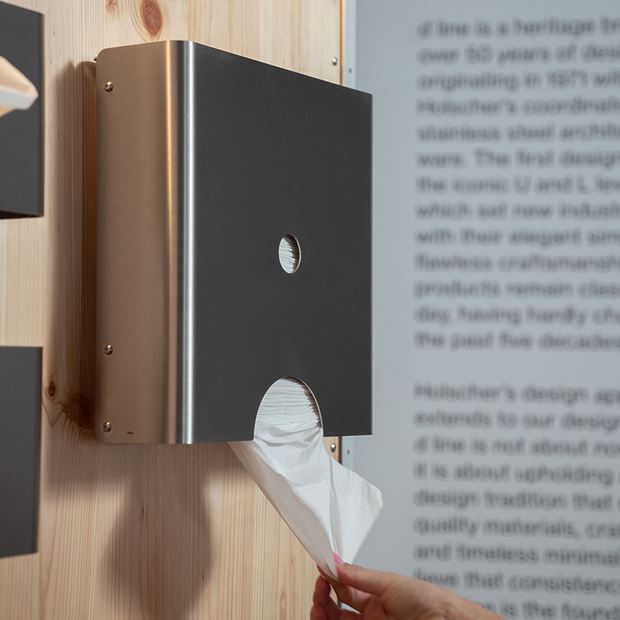

Paper towel dispenser

• Design: smaller projection from wall, but with same existing front view (with paper indicating front arc).
• Made easy refill by opening dispenser (fit two paper packs).

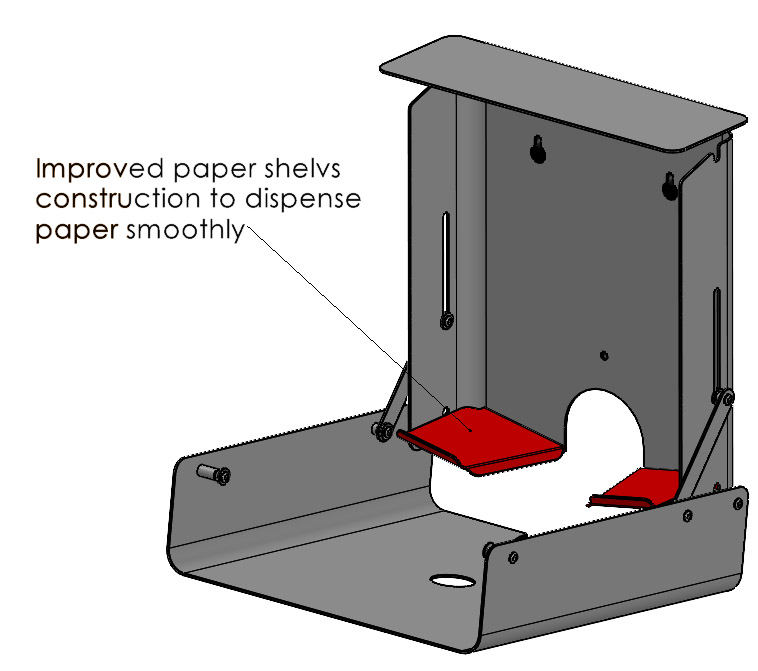

• Improved two bottom paper base shelves geometry to increase smoothness of paper sliding when dispenser is full or almost empty.
• Paper always park in the middle -two bottom paper base plates made under angle and paper self-centering when pulling.
• Paper folding type Z with possibility to use various paper widths (left space in the sides for other paper widths).
• Size: 285 x 113x 300 mm.

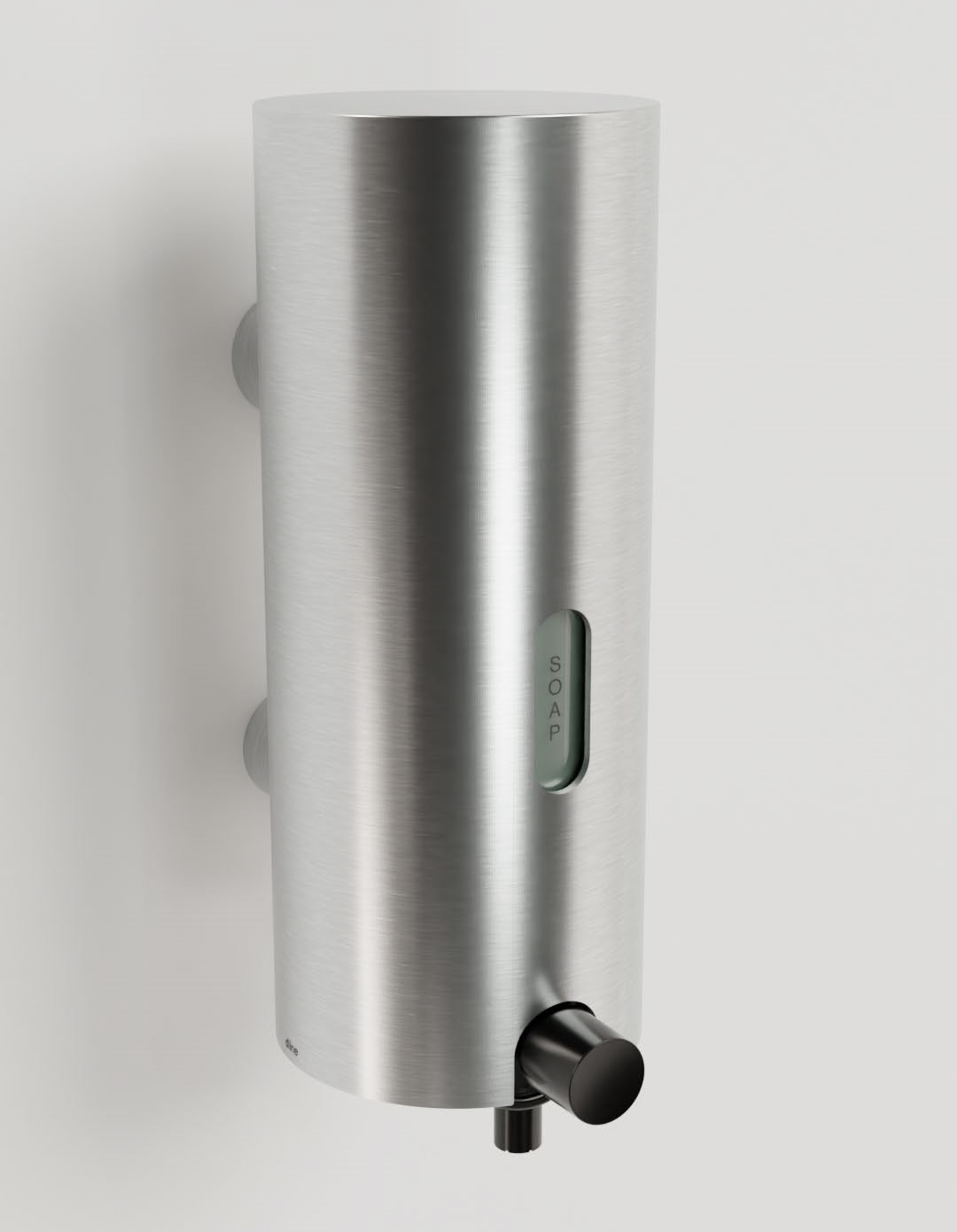

Soap dispenser

• Discontinue soap dispenser without indicator.
• Stay just with black color plastic button.

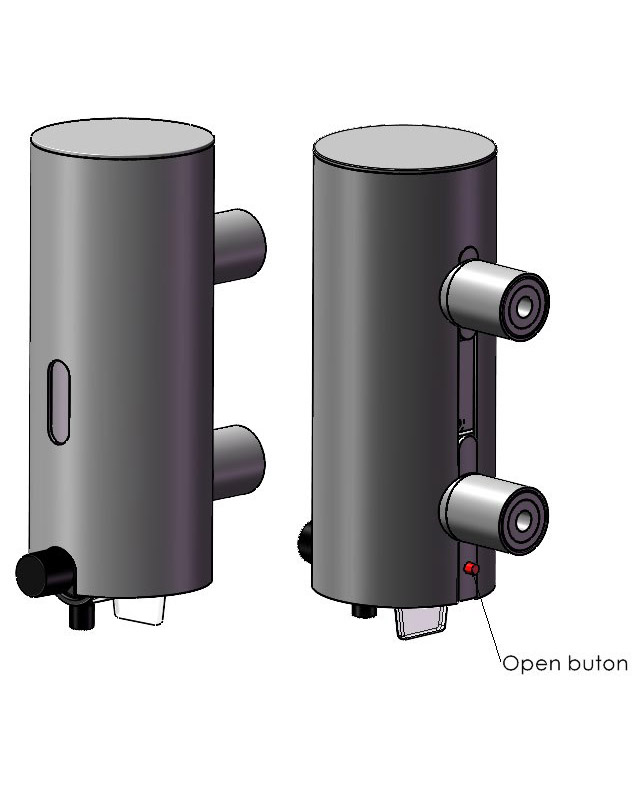

• No longer a keyfor opening, easier refilling.
• Liquid information in the oval window (sticker – soap, lotion, disinfectant).

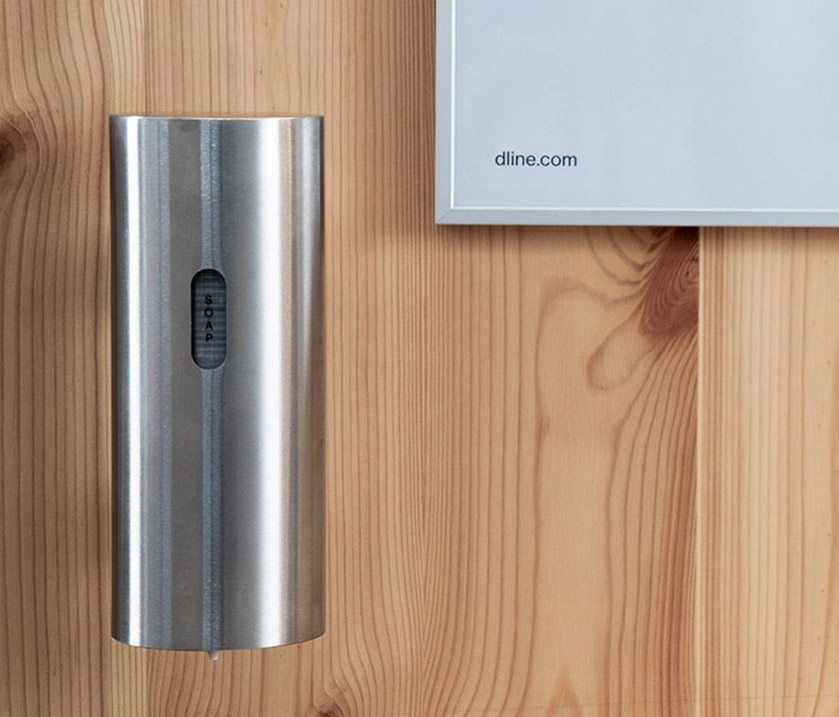

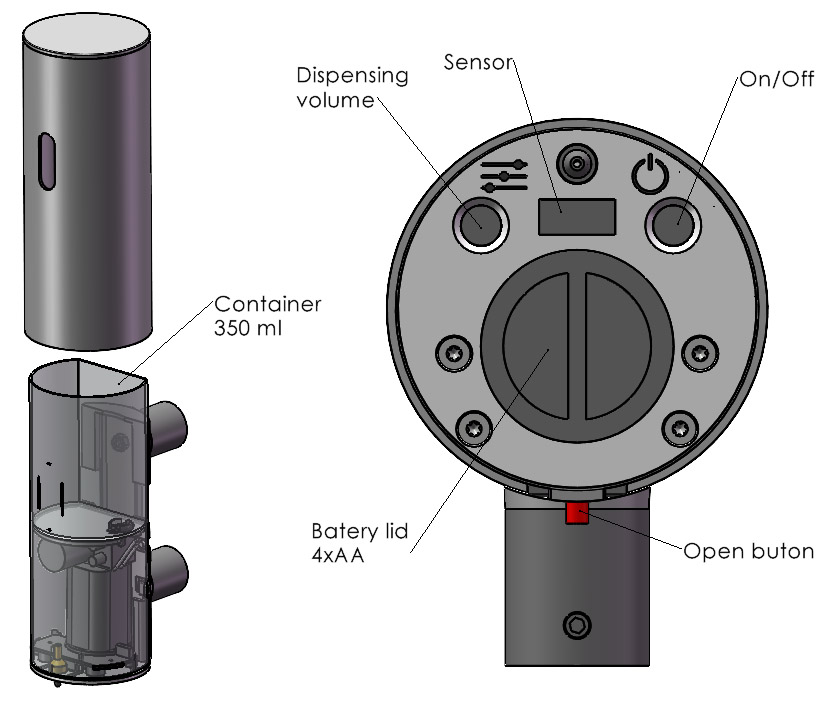

Sensor soap dispenser

• New smaller pump.
• Size -cylinder form (Ø85) same as the manual dispenser.
• No longer a key for opening, easier refilling.
• Low noise when dispense.
• Quick pump reaction(0,2s).
• 3 levels of soap volume to switch: 0.5 / 1.0 / 1.5 ml.
• 4xAA batteries powered for over 40,000 cycles.
• Soap –Lotion –Disinfectant

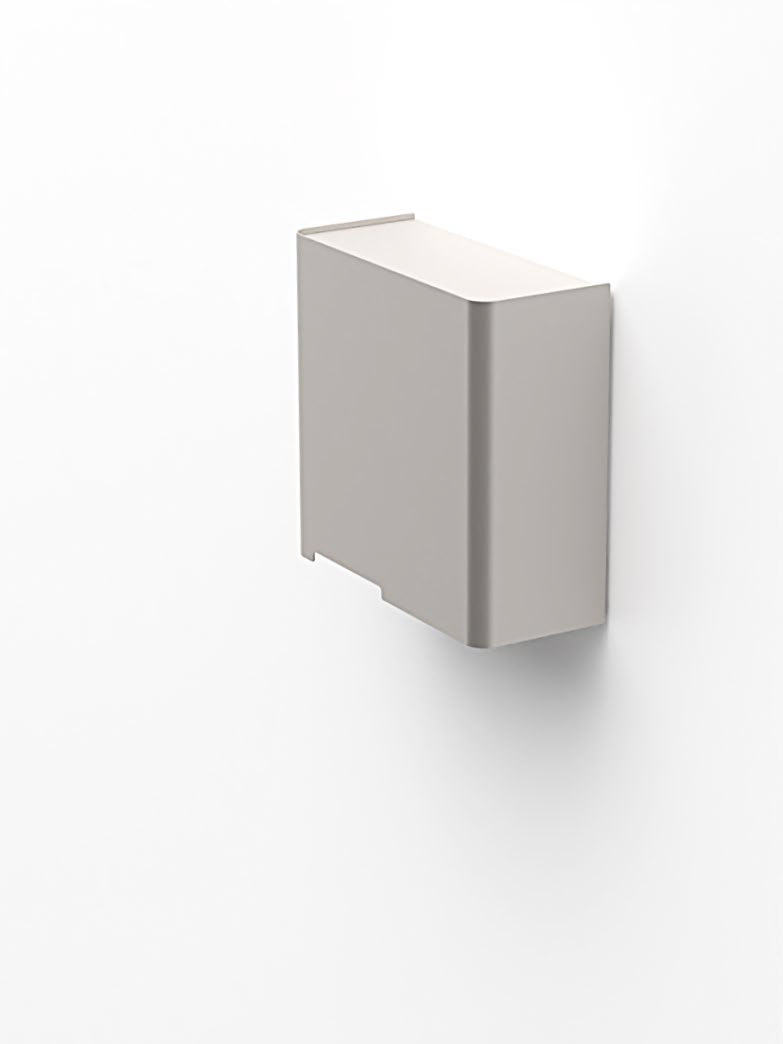

Hand dryer

• New design.

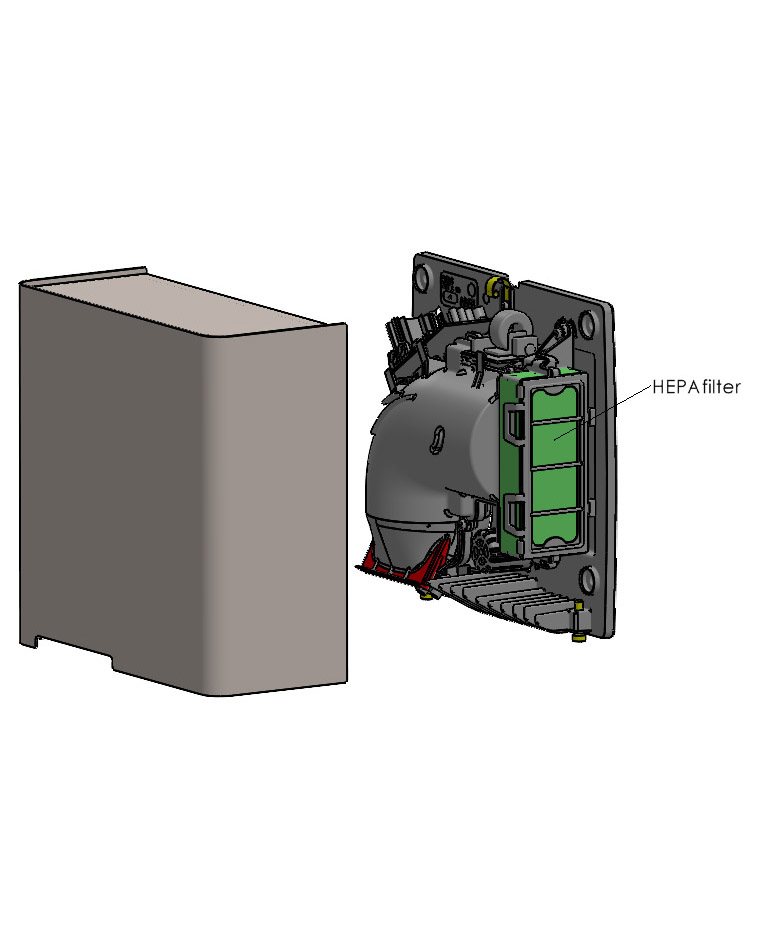

• New engine with HEPA filter.
• Air flow from left hand side, cut out to indicate the sensor area and air outlet.
• Simple mounting.
• Decided to discontinue all other wall mounted hand dryers.

The series is made of stainless steel and, like all d line products, is available in five colors and comes with a 20-year warranty.
